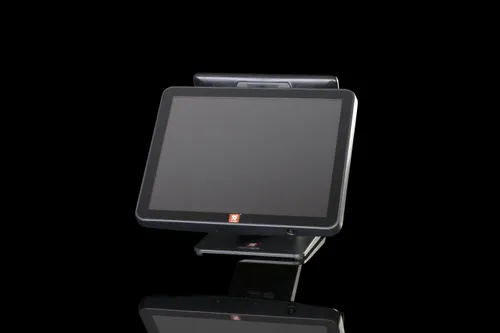

15" Ubiquitous Bezel free INDUSTRIAL TERMINAL

• Built in i5 (Intel Core i5 6300-U),

• 4GB RAM,120GB SSD

• IP 65 sealed front panel with touch design

• 5 USB, 2 Serial, 1 LAN, with 7th gen. base

• OS versatility (android ,Windows, linux compatible)

• Bezel free & PCAP Touch Screen,

• True Vent free machine

• Table top/wall mount stand/kit (which is aluminium body) acts as Heat sink

• Toughened Sodalime Glass

• 1 x 2W speaker installed. 1 x Line out & 1 x Mic in (Optional)

• 3 YRS Onsite Warranty

PS-3616 / PS-3616Q

₹ 38000 starting price / Piece

Feature	Description
OS	Android , Windows , Linux compatible
IP Rate	IP 65 rates
Processor	D Series – Intel Apollo Lake N3350/J3455
System Memory	DDR3L SO-DIMM x 1, max. 8GB
Storage Device	M.2 connector (SATA Signal Only) x 1
Power Supply	12V/40W
LCD	15.6” TFT LCD
Resolution	1366 x 768
Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)
Serial Port	4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port	1, via optional conversion cable through service window
Standard USB Port	5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
PoweredUSB Port	Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB	N/A
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable
PS/2 Port	1, via optional conversion cable through service window
Audio	Buzzer x 1; Optional internal 2W speaker x 1
Dimension (W x D x H in mm)	372 x 252.7 x 291.4
Weight (N. W. in kg)	4.7
Operating Condition	0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition	-20°C – 70°C, 10%RH – 90%RH
WiFi	M.2 WiFi/BT module
Line Display	2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display; 7″ color LCD graphical line display

IT Solutions PS-3616 / PS-3616Q
