Equipped with DeviceOn / iService software for remote device management 15" TFT LCD (LED backlight) with 5 wire Resistive or PCAP Touch Built in Intel Baytrail J1900 or Skylake-U Stylish design with dual hinge, thinner boarder, slim screen Clear Cable Management Low power & fanless operation without heat ventilation holes Easy access to key components Easy peripheral mount design integrated Device Options: 2nd Display, MSR, VFD, RFID, Barcode Scanner Fully support WISE-PaaS/DeviceON

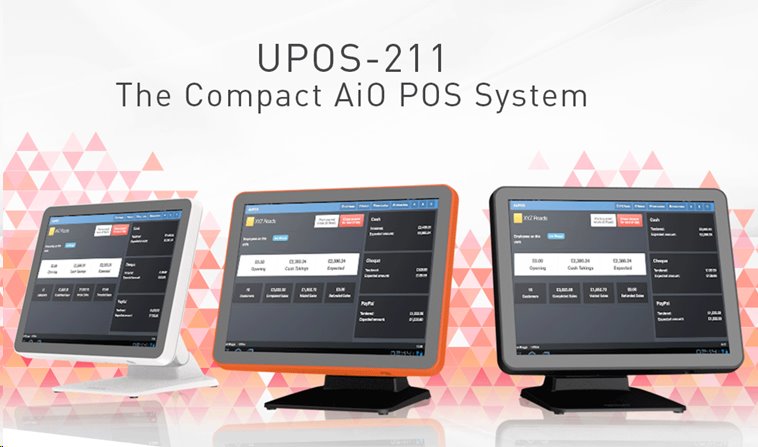

UPOS-211 is an All-in-One POS System with 15" true-flat PCAP touch or 5 wire Resistive touch. It is with Intel Baytrail or Skylake-U processor, fanless design with quiet operation and energy saving. It features dual hinge design which provides the smallest footprint to save counter space and reduce shipment freight. It provides easy access to key components. UPOS-211 supports both Windows and Android OS, and the front panel is with IP65 design, supports water and dust resistance, specific designed for Mini market store, Food merchandise, Convenience store, Specialty store. UPOS-211 is with the most competitive cost, and energy effective platform built for retail and hospitality. Moreover, UPOS-211 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
₹ 42,000 / Piece
| Feature | Description |
|---|---|
| Model | UPOS-211DPX |
| Processor | Intel Bay Trail Quad Core J1900, 2GHz up to 2.42GHz |
| Memory | Max. Capacity 8G |
| Storage | 1 x 2.5 |
| Panel | 15 |
| Touch Screen | 15 |
| Audio | 1 x 2W speaker installed. 1 x Line out |
| Power Supply | 60W power adapter |
| Serial Port | External: 3 x COM RS232 ports on I/O board, COM1 support 5V & 12V by order, COM2/COM3 no power Internal: 1 x COM port, COM4 for VFD |
| USB Port | External: 4 x USB2.0; 1 x USB3.0; 1 x Type C Internal: 1 x USB2.0 (for PCAP touch) |
| Ethernet | LAN controller: Realtek RTL8111G-CG, 1x RJ-45 Gigabit Ethernet |
| Display Output | External: 1 x VGA Internal: 1 x VGA (for 10 |
| Cash Drawer | 1 x RJ11, cash drawer, 24V default, 12V by order |
| PS2 | 1 x PS2 (for MSR only) |
| DC-In | 12V |
| Bus Expansion | 1 x Mini PCIe (for Wifi or 3G), shared with mini SATA connector |
| Parallel Port | 1 x LPT (optional) |
| IP65 | IP65 front panel protection |
| Dimension (W x H x D) | 354(W) x 327(H) x 237(D)mm, Stand: 237 x 200 mm |
| Weight | 5.2KG (Net weight) / 6.9KG (Gross weight) |
| Operating Temp | 0 ~ 40° C |
| Relative Humidity | 10 ~ 90% @ 40° C |
| Shock | 10G peak acceleration (11ms duration) |
| Vibration | 5~500Hz 0.5Grms, random |
| EMC / Safety | CE, CCC, UL, FCC, CB/LVD, VCCI, BSMI |
| OS Support | POSReady 7, Windows 7 Pro, Windows 8.1 Pro (64-bit), Windows 10 IoT Enterprise, Linux Kernel 3.13 or above Android 4.4 (UPOS-211D series supports Android; UPOS-211F series does not support Android |
